Customized Sales Chrome Casting Balls For Cement Manufacturers

Chrome Casting Balls For Cement

Brand HY
Product origin China
Delivery time 20-45 days
Supply capacity 50000T

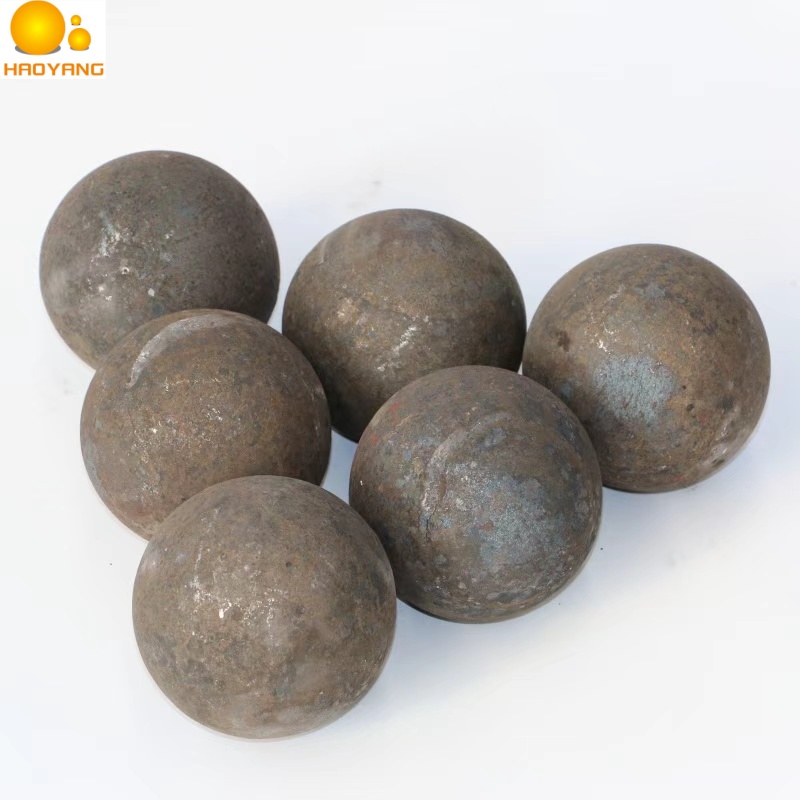

High Chrome Grinding Media balls

Haoyang Hi Chrome Grinding media balls can provide: Cr 1%-28%, hardness: HRC40-66, Dia.10mm-150mm alloy cast steel balls. The balls have a lot of excellent properties, such as higher hardness, good abrasive resistance, together with a good surface finish and small dimensional allowance after scientific heating treatment, as one type of chrome grinding media, it can be widely used in ball mill grinding systems of mines, cement, building materials and chemical industries,etc.

High Chrome Casting grinding balls , chrome concentration is 》10%-14%， Hardness 》HRC 58, High Chrome casting grinding balls is one of the wearable steel balls with better performance -price-ratio, and its extensive usage has won itself a high share in the market .

Email

Download

High chrome cast ball is a professional wear-resistant grinding media widely used in ball mill systems for mining, cement, power plant and industrial raw material grinding. Manufactured by medium-frequency electric furnace melting, metal mold casting and precise quenching & tempering heat treatment, our high chrome cast balls feature stable metallographic structure, uniform hardness and excellent comprehensive mechanical performance.

We supply full series high chrome grinding media including Cr12, Cr15, Cr20 and Cr26 grades. The chromium content is over 10%, which forms dense and hard M7C3 chromium carbide phases inside the ball, providing far higher wear resistance than low chrome balls and forged steel balls.

Core Performance Advantages

1. Super High Hardness & Wear Resistance

Overall hardness reaches HRC 58-66 with consistent hardness from surface to core. The special alloy formula greatly reduces grinding loss, effectively lowering your consumption cost per ton of ore or cement clinker.

2. Ultra Low Broken Rate & Stable Operation

Strict heat treatment process ensures impact toughness ≥3.0J/cm². The actual broken rate is controlled below 0.3%, avoiding ball breaking, out-of-round and mill blockage problems. It stabilizes ball gradation and improves mill output continuously.

3. Excellent Corrosion Resistance

High chrome alloy structure resists oxidation and slurry corrosion, perfectly suitable for wet grinding conditions in mineral processing. It performs much better than ordinary forged steel balls in humid and alkaline grinding environments.

4. Long Service Life & Lower Comprehensive Cost

Compared with low chrome cast balls, our high chrome grinding media has 2-3 times longer service life. Although the unit price is slightly higher, it greatly reduces replacement frequency, downtime loss and overall grinding media consumption, bringing obvious cost advantages for long-term production.

Product Specifications & Grades

Available Grade: Cr12, Cr15, Cr20, Cr26 High Chrome Cast Ball

Available Size: φ30mm, φ40mm, φ50mm, φ60mm, φ80mm, φ100mm, φ120mm, φ140mm (custom large size available)

Hardness: HRC 58-66

Broken Rate: ≤0.3%

Application Fields

• Cement plant: raw material mill, clinker finish mill

• Mining industry: iron ore, gold ore, non-ferrous metal wet grinding

• Power plant & chemical industry: coal ash, slag grinding

• Non-metallic minerals: quartz sand, feldspar, refractory material grinding

Factory Strength

We are a professional manufacturer focused on high-quality grinding media. Strict raw material inspection, standardized casting process and complete heat treatment system ensure stable quality for every batch of high chrome cast balls. We support OEM & customized sizes, provide stable bulk supply and competitive factory price for global clients.
