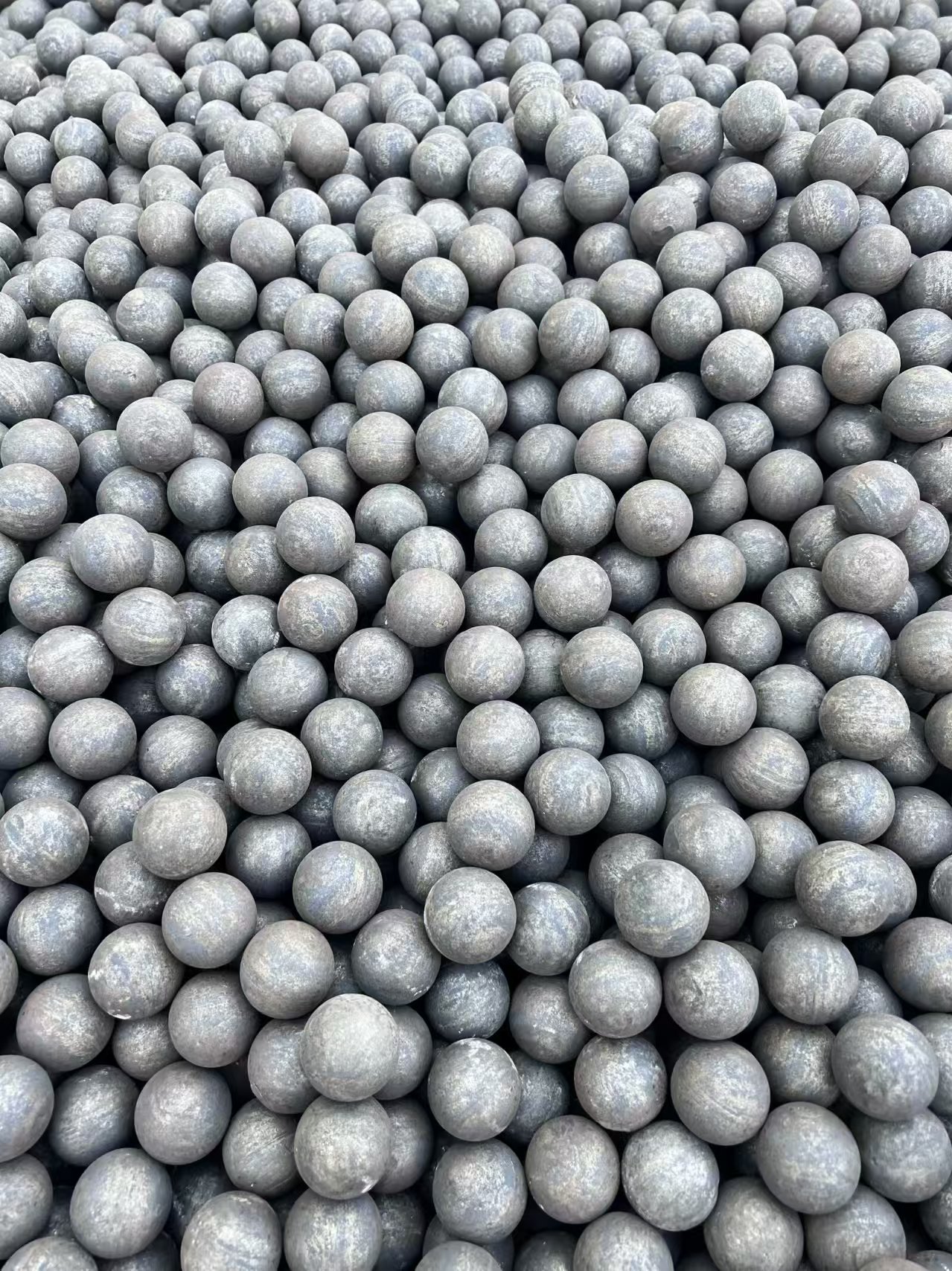

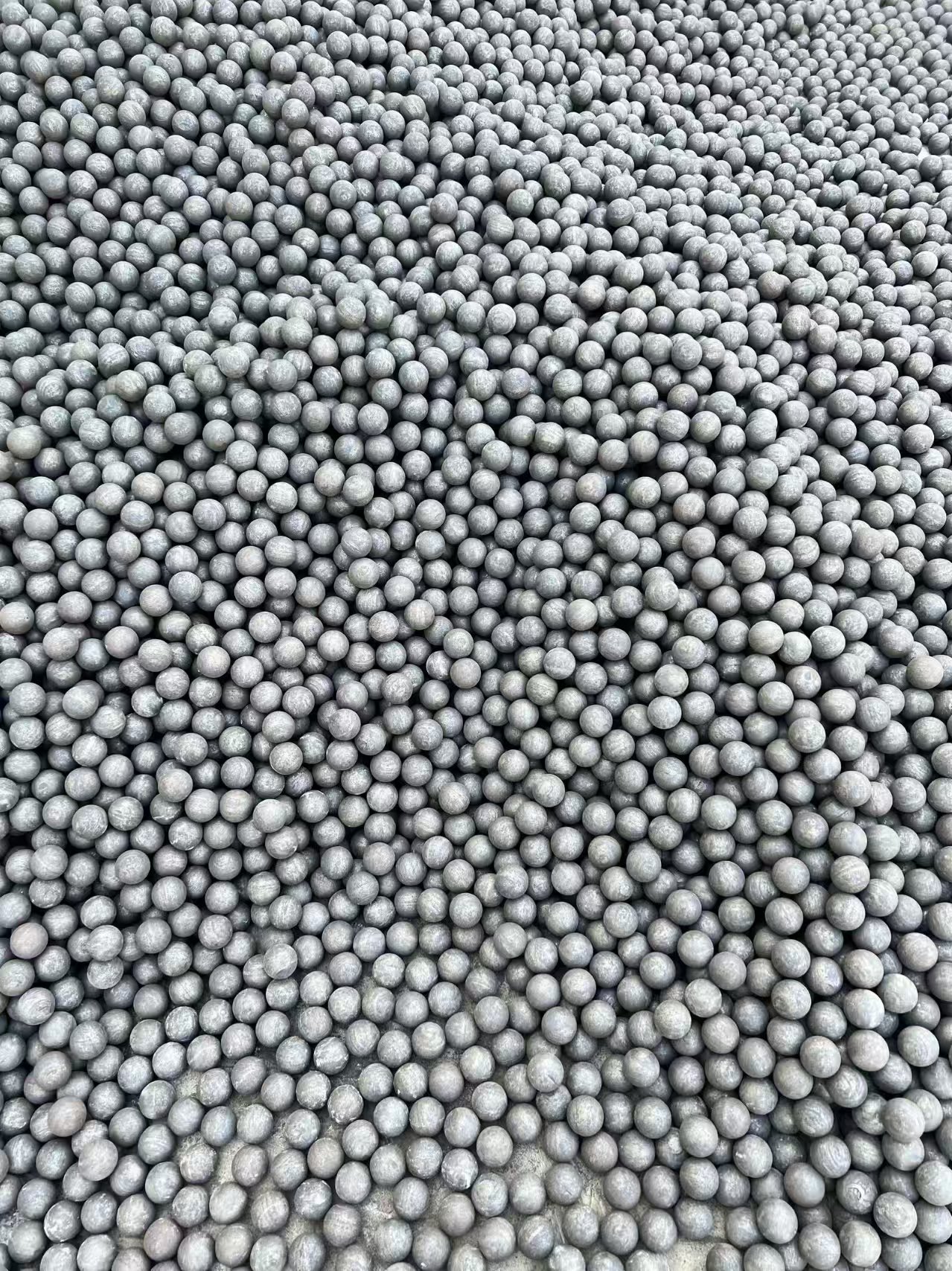

Forged Grinding Steel Balls | B2 50‑120mm HRC58‑64 for Ball Mill Mining Cement
- HAOYANG
- China
- 7-15 days
- Annual output ranging from 30,000 to 50,000 tons
✅ Uniform Hardness Distribution：Surface HRC55‑65, stable core hardness, no easy peeling.
✅ Low Breakage Rate：Breakage rate ≤1%, avoid mill block‑down caused by broken balls.
✅ High Impact Toughness：Impact value ≥12 J/cm², fit heavy‑load SAG mill & large ball mill.
✅ Long Service Life：Dense metallographic structure, lower wear consumption than cast grinding balls.
✅ Strict Quality Control：100‑percent hardness & dimension inspection per batch, SGS test report available.
✅ Customizable：Multiple grades & sizes to match different ore hardness and working conditions
Forged Grinding Balls Application industry

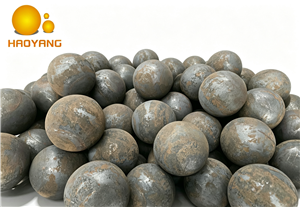

1. Ball Milling The Grinding Balls are produced from High Carbon or Alloy steel bars and then forged into balls or by Auto rolling machine improving the output.which are for use in mineral processing ball milling operations . Using the high carbon content and high hardness levels for maximum abrasion resistance . in nominal sizes from 1.0” to 4.0” in diameter.
2. SAG Milling Haoyang Balls range has some of the leading SAG ball products in the industry, that are specifically designed for today's SAG milling environments. Haoyang has developed a product with high toughness and superior wear life.
3. Ball Milling for Industrial Applications Haoyang manufactures grinding balls for use in industrial applications such as power and cement. The balls are manufactured from high carbon, alloy steel bars and then forged into balls.
Forged Grinding balls chemical composition :
| Brand | Remarks | Chemical Composition (%) of Raw Material | ||||||
| C | Mn | Cr | S | P | Si | Hardness | ||
| HY-1 | 60Mn | 0.57-0.65 | 0.7-1.0 | 《0.25 | Max0.030 | Max0.030 | 0.17-0.37 | 58-60 |
| HY-2 | 65Mn | 0.60-0.70 | 0.90-1.2 | 《0.25 | Max0.030 | Max0.030 | 0.17-0.37 | 58-65 |
| HY-3 | 75Mn | 0.72-0.92 | 0.90-1.2 | 《0.25 | Max0.030 | Max0.030 | 0.17-0.37 | 55-65 |

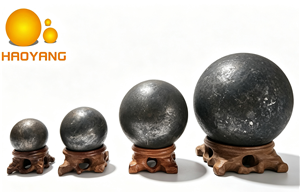

| HY-4 | B2 | 0.72-0.85 | 0.7-1.2 | 0.42-0.85 | Max0.030 | Max0.030 | 0.17-0.37 | 60-65 |
| HY-5 | B3 | 0.5-0.65 | 0.4-1.0 | 0.77-1.10 | Max0.030 | Max0.030 | 1.4-1.8 | 60-65 |

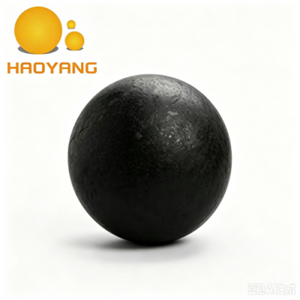

Dimension Series :

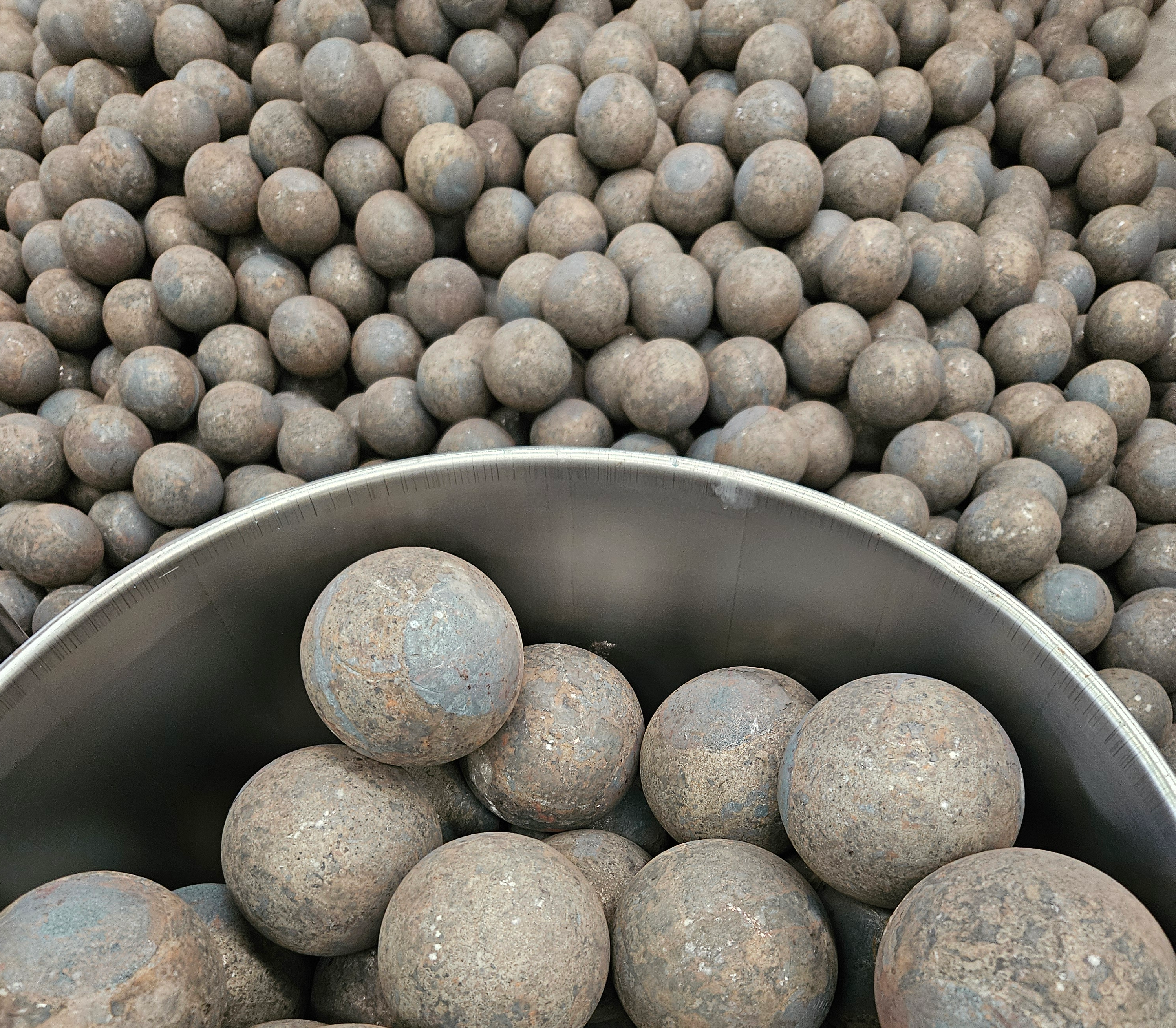

Grinding balls Production Process :
Packing of Grinding Media Balls
The grinding balls to be packed in steel drums with openable top or bulk bags.The plastic bags should be of good quality with 5:1 safety ratio .Drums or bags packed on pallets made of heat treated wood or plywood.
Why choose us ?
1. Strategic Partnership with standard steel enterprise and sign the long term agreement ( 50,000 Tons Annually ) Purchase directly from Chinese famous standard steel enterprise , such as Laigang Group , HBIS, ANSTEEL , XIWANG SPECIAL STEEL .
2. Our vice Director Mr Chen as the grinding balls’ technology specialist is personally responsible for the steel purchasing . (Negotiating , Sign Contract with steel company , Steel elements Matching confirmation and inspection
3. Stable Delivery time
4. Each batch steel label will be taken photo and recorded ( Steel company name, Description of goods , Specification , Steel Grade, Heat Number , Production Date and etc.. ) for Tracking in future 5 years !
5. The steel will be inspected by spectrograph When into our factory
If there is any problem with the chemical composition , all the steel will be returned back to steel company
6. Information exchange of Steel price tendency
Haoyang manufacturing grinding balls of European quality :
Jinan Haoyang Casting & Forging Co.,ltd is one of the leading grinding media manufacturer in China .Our products are designed for grinding of raw materials by cement plants, energy generating companies, ore mining and industrial processing facilities, construction materials plants located in China . Haoyang steel balls manufacturing plant was put into operation in June 2008.Today, we deal with continuously growing consumer requirements for operational properties of grinding media, what directly affects ball mill prices and quality, efficiency of equipment and the enterprise in general.
The plant was built using the most advanced equipment. Through the use of modern technologies and cooperation with a number of research organizations, we managed to achieve very high levels of quality in grinding steel balls. Despite its short history, Haoyang managed to become a manufacturer of quality grinding media for ball mills, as well to keep its position on both the domestic and overseas markets .The operational properties of steel balls produced by Haoyang allow to significantly reduce the consumption of grinding balls and power, to increase grinding fineness of raw materials, to decrease the number of mill repairs and, consequently, to increase their productivity.
